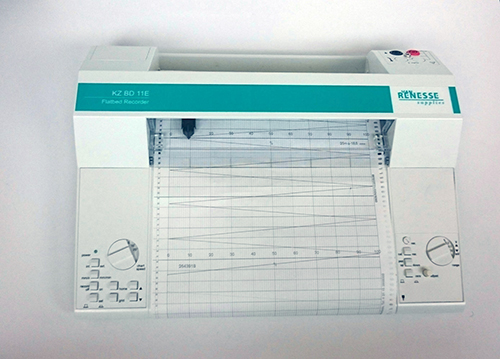

BD11E single channel recorder


The BD11E single channel flatbed chart recorder is based on a proven, robust and reliable design that is recognized world-wide as being the standard in recording. It has differential inputs with constant impedance over all input ranges which allow for accurate measurements from almost any source.



The high sensitivity (up to 400 μV full scale) and gilded input contacts allow even very low voltages to be measured accurately. The high-speed servo system records signals up to 5 Hz and the 6th order 14 Hz low pass filter eliminates the 50/60 Hz noise completely.

An auto pen-up at power and record off prevents ink stains on paper. The newly designed penholder has improved grip and simplifies the exchange of pens.

Features::
-     Modern design
-     State-of-the-art technology
-     Differential inputs
-     Electrical penlift
-     Chart drive with grid and home function
-     16 chart speeds from 0.1 mm/min to 20 mm/sec
-     Remote control for chart drive
-     User selectable left or right zero-position
-     Event marker per channel
-     Paper advance/rewind button

Additionally available:


Carrying casearticle no. 2067-033
Temperature module type J from -20 to 600 °C, Accuracy ± 3.0°Carticle no. 0350-732
-4 to 1112 °F, Accuracy ± 5.4°F
Temperature module type K from -20 to 1000 °C, Accuracy ±4.0°Carticle no. 0350-731
-4 to 1832 °F, Accuracy ± 7.2°F
Voltage attenuator 100:1, 500V max.article no. 0328-322
Voltage attenuator 10:1, 500V max.article no. 0328-324
Current shunt 0-20mAarticle no. 0328-320
Current shunt 4-20mAarticle no. 0328-321
Current shunt 0-16Aarticle no. 3300-001

Consumables:


Paper
XR9 chart roll, zero left, set of 10article no. 2643-918
XR18, chart roll, zero right, set of 10article no. 2643-962

Fibre pens for channel 1
XR12/1 set of 5 red pensarticle no. 2643-909
XR12/2 set of 5 blue pensarticle no. 2643-852
XR12/3 set of 5 green pensarticle no. 2643-910
XR12/4 set of 5 black pensarticle no. 2643-908
