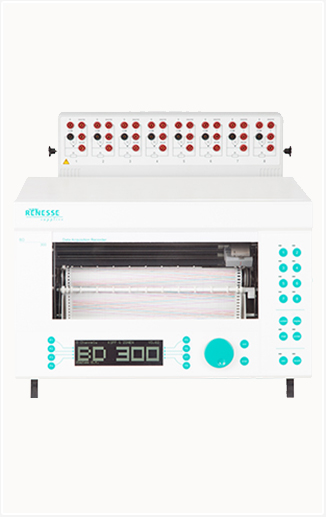

BD300 Recorder


The BD 300 is an extremely versatile Data Acquisition recorder. Every channel is capable of recording all of the most popularly desired measurements-VDC, VAC, Current, Temperature, and Frequency. The innovative input backpack, which can be detached from the recorder, lets the user have easy access to the input connectors. The newly designed digital steppermotor servo system offers highly accurate and reliable recording.





Features:
-     Available in 4, 6, and 8 pen versions
-     USB-Port
-     Logging up to 400Hz/channel (Chart recording to 2.5Hz)
-     Unique user interface allows easy set-up and display of all recorder function
-     Dust-resistant enclosure
-     Zone Recording

Additionally available:

Annotation printhead (factory fitted)article no. 0333-717
LED illuminationarticle no. 0333-713
19" rack mountarticle no. 0333-702
Transport casearticle no. 0014-891
Voltage attenuator 100:1, 500V max.article no. 0328-322
Voltage attenuator 10:1, 500V max.article no. 0328-324
Current shunt 0-16Aarticle no. 3300-001

Paper
XR23 z-folded paper, zero left, set of 10article no. 2643-989
XR High Contrast , z-folded paper, set of 10article no. 2643-851 (only for use with annotation printhead)

Pens
XR30, set of 3 red fibre pensarticle no. 2643-838
XR30, set of 3 green fibre pensarticle no. 2643-839
XR30, set of 3 blue fibre pensarticle no. 2643-840
XR30, set of 3 black fibre pensarticle no. 2643-841
XR30, set of 3 brown fibre pensarticle no. 2643-842
XR30, set of 3 violet fibre pensarticle no. 2643-843
XR30, set of 3 orange fibre pensarticle no. 2643-844
XR30, set of 3 pink fibre pensarticle no. 2643-845
Inkjet print head cartridgearticle no. 4410-634
