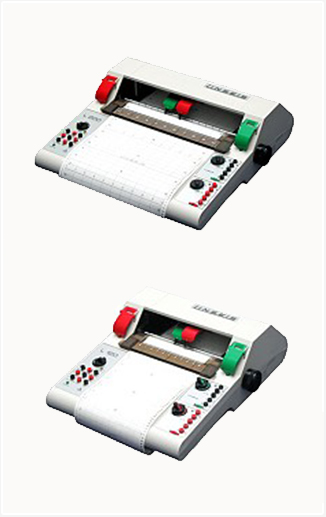

L250E Flatbed Chart Recorder, Single/Dual Channel
Details:
- Chart width: 250mm
- 1 and 2 channel version
- mV, V and mA inputs
- Separate electric pen lift per channel
- Chart drive with grid function
- 16 chart speeds from 0,1 mm/min to 20 mm/sec
- Remote control for chart drive
- Single chip hybrid technology
- Long life fibre tip pens
- Monitor output signal
- Paper advance/rewind knob
- Counter voltage (opt.)
Product Codes:
| Flatbed Chart Recorder Single Channel | L250E-1 |
| Flatbed Chart Recorder Double Channel | L250E-2 |
Consumables: |
| Paper | Article no. |
| 16m x 250mm wide with 100 divisions | 80003001 |
| Pens | Article no. |
| Set of 5 green pens | L120/1 |
| Set of 5 red pens | L120/2 |
| Set of 5 blue pens | L120/3 |
| Set of 5 brown pens | L120/4 |
| Set of 5 black pens | L120/5 |
| Set of 5 violet pens | L120/6 |
Download brochure (EN)
